Zone Air® Airframe 9,500 BTU 21 SEER2 230V Ceiling Cassette Mini-Split Heat Pump AC with Pre-Charged Lineset - Up to 475 Sq Ft

A Recessed Ceiling Cassette That Disappears Into the Room — and a DIY Install You Can Actually Finish Yourself

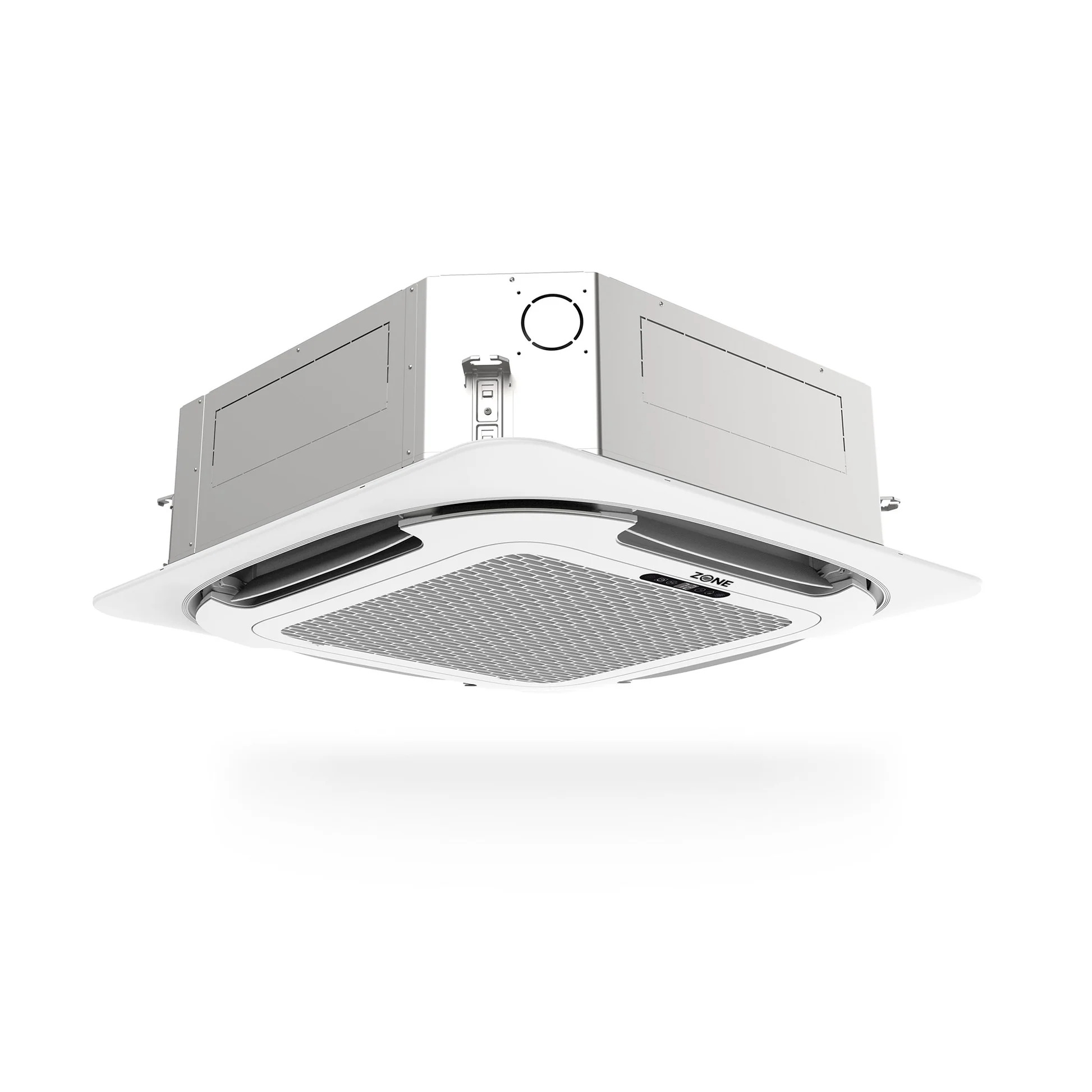

The Zone Air Airframe 9,500 BTU ceiling cassette mounts flush and recessed into your ceiling, so all you see from below is a clean, low-profile grille that blends into the architecture. Instead of a box hanging on the wall, you get even 4-way airflow pushing conditioned air to all four corners of the room — and a wall that stays completely free for art, shelving, and furniture. This is contractor-grade comfort with a discreet look, and it still installs DIY thanks to the pre-charged line set.

Pre-charged line sets come with R-454B refrigerant for easy installation, keeping the refrigerant circuit factory-sealed from start to finish. That means you never handle refrigerant, you never touch a vacuum pump, and EPA Section 608 certification requirements don't apply. This 9,500 BTU cassette cools and heats up to 475 sq ft (ideal for rooms in the 350–500 sq ft range), making it a perfect fit for bedrooms, home offices, sunrooms, and finished spaces where you want the equipment out of sight.

A ceiling cassette is a bit more involved than a wall unit because the indoor head recesses up into the ceiling cavity — you'll need access above the room through a drop-ceiling tile or an open joist bay. But the hardest part of any mini-split, the refrigerant work, is already done at the factory. With basic hand tools, a drill, and the quick-connect line set, most homeowners complete the job in a day and save $3,000–$5,000 versus a professional install.

Why You'll Love It

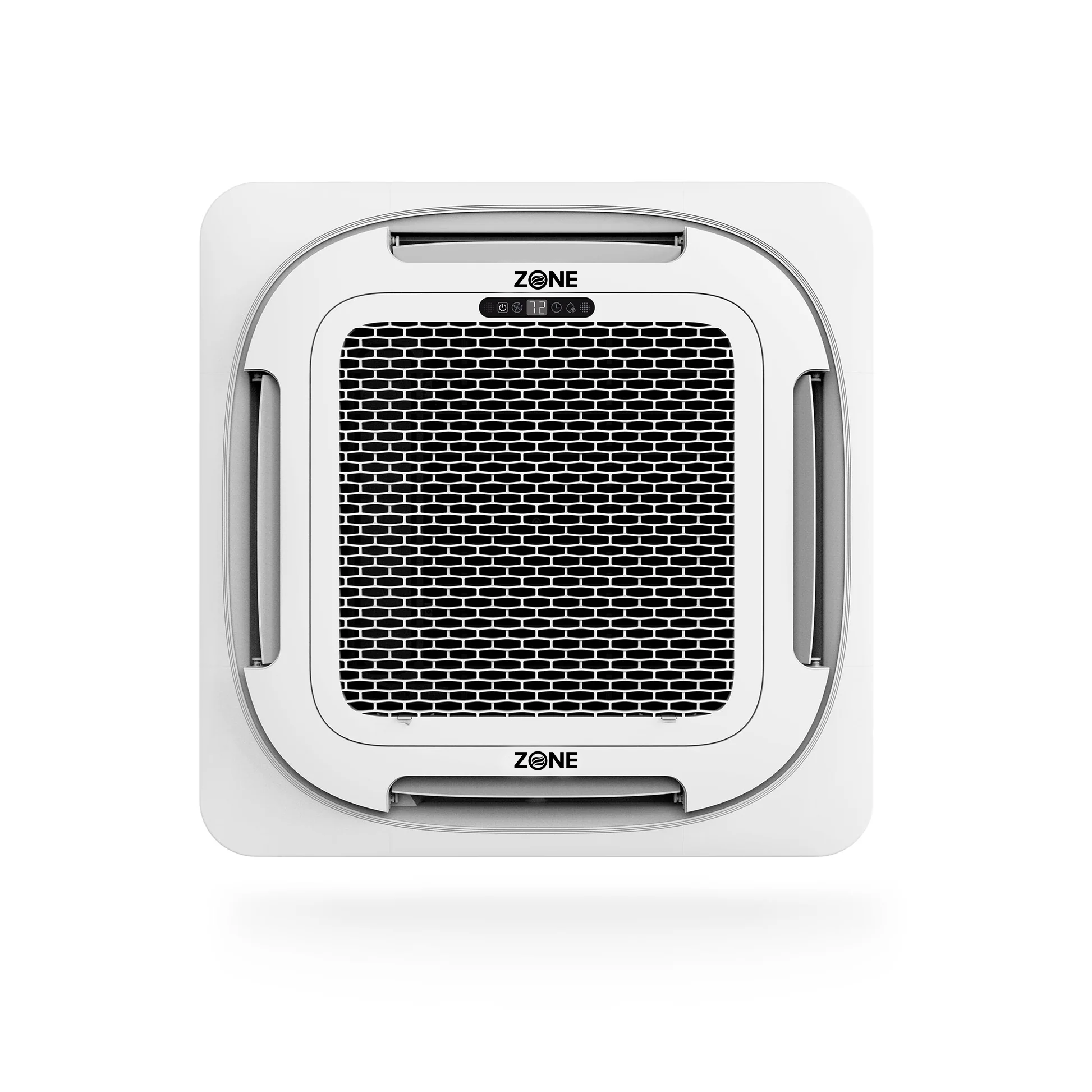

• Discreet, Architectural Look — The Airframe cassette recesses into the ceiling so only a slim grille shows. No bulky wall box, no wasted wall space — just clean lines and even comfort. It is the most invisible way to add a ductless mini-split to a finished room.

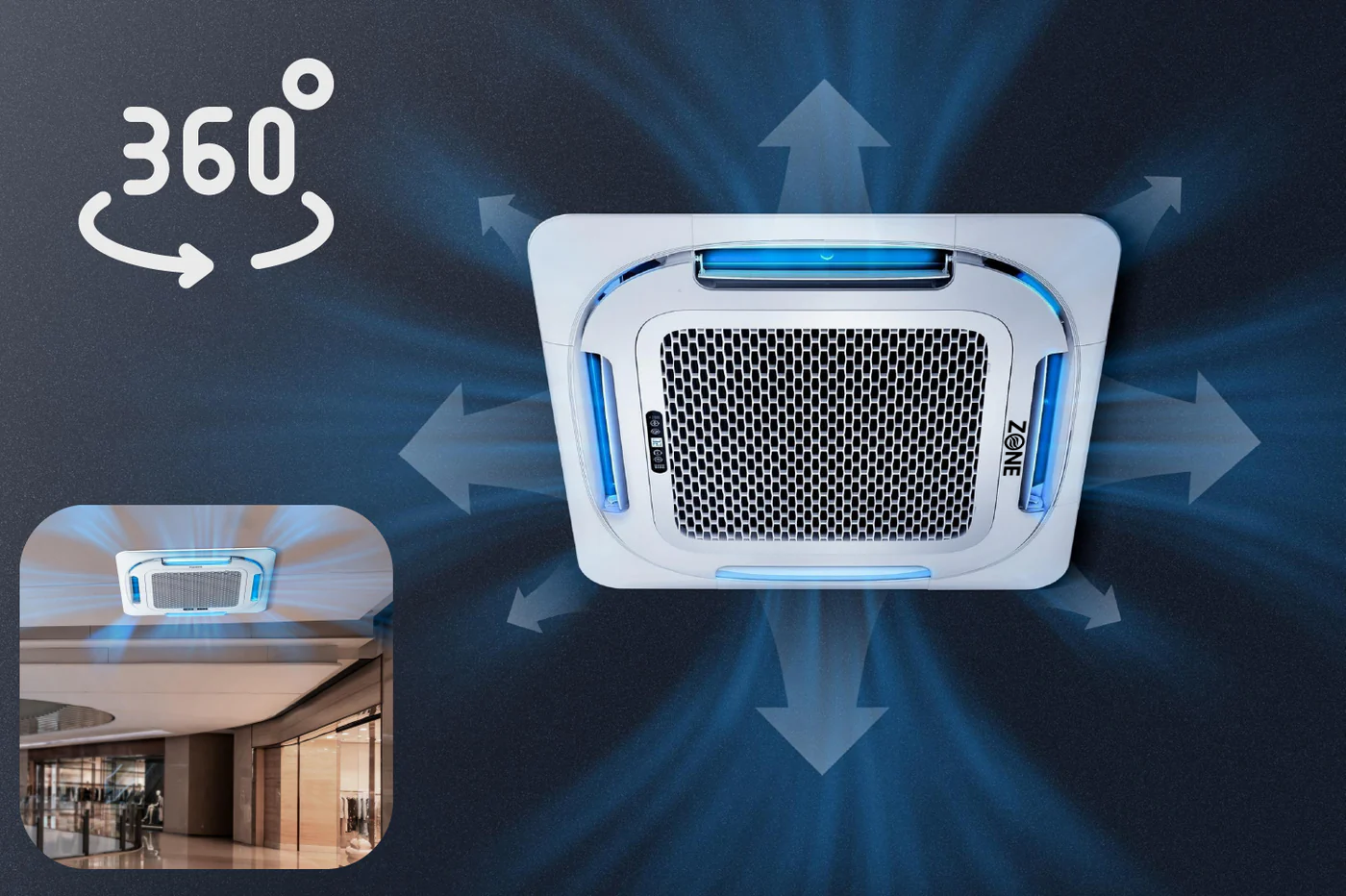

• Even 4-Way Airflow — Mounted in the center of the ceiling, the cassette distributes conditioned air in all four directions for balanced temperatures with no hot or cold corners. A wall unit blows from one side; the Airframe blankets the whole room evenly.
• Up to 21 SEER2 Efficiency — SEER measures cooling efficiency, and a higher SEER rating means lower energy bills. At up to 21 SEER2 with Energy Star certification, this cassette runs efficiently year-round, and mini-splits can save up to 30% on energy costs compared to traditional systems.
• Cold Climate Performance — Reliable heating down to -13°F thanks to enhanced vapor injection, which maintains approximately 85% of rated heating capacity at 5°F. Your room stays warm through deep winter without backup heat strips.
• 5-Year Warranty Protection — Zone Air backs the Airframe with 5-year parts and 7-year compressor coverage, plus 30-day returns — total security and peace of mind on a system you installed yourself.

What Makes It Different

Most ceiling cassettes are sold strictly as pro-install equipment because they assume you will hire an HVAC tech to vacuum and charge the lines. The Airframe is engineered differently: it pairs a genuine recessed cassette with a pre-charged, quick-connect line set so the discreet ceiling look no longer requires a contractor.

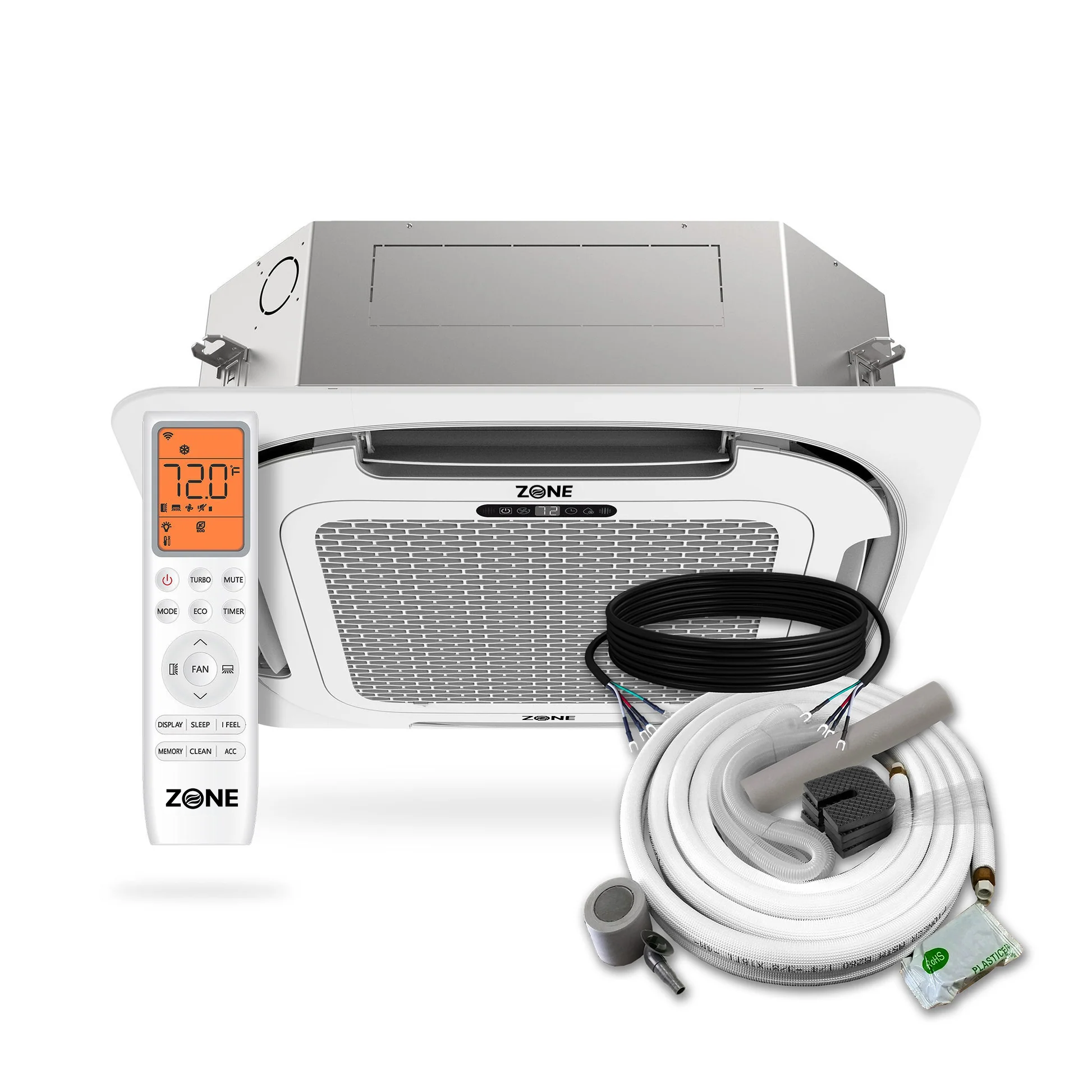

• Pre-Charged Line Set Technology — The line set arrives factory-sealed with R-454B refrigerant. Connect the quick-connect fittings by hand, torque to spec, and the circuit is ready. No vacuum pump, no gauges, no HVAC license — pre-charged line sets eliminate the need for HVAC licensing entirely.
• True DIY, Even for a Cassette — Recessing a head into the ceiling sounds intimidating, but with the included mounting frame, step-by-step instructions, and video support, it is squarely a homeowner job. You will need ceiling-cavity access above the room and basic tools — a drill, a wrench set, and a level — and the refrigerant work is already done for you.
• Cold Climate Optimization — Unlike standard cassettes that fade below freezing, Zone Air's Airframe uses enhanced vapor injection to sustain heating output to -13°F. This is a purpose-built cold climate heat pump, not an air conditioner with a reversing valve bolted on.

How It Works

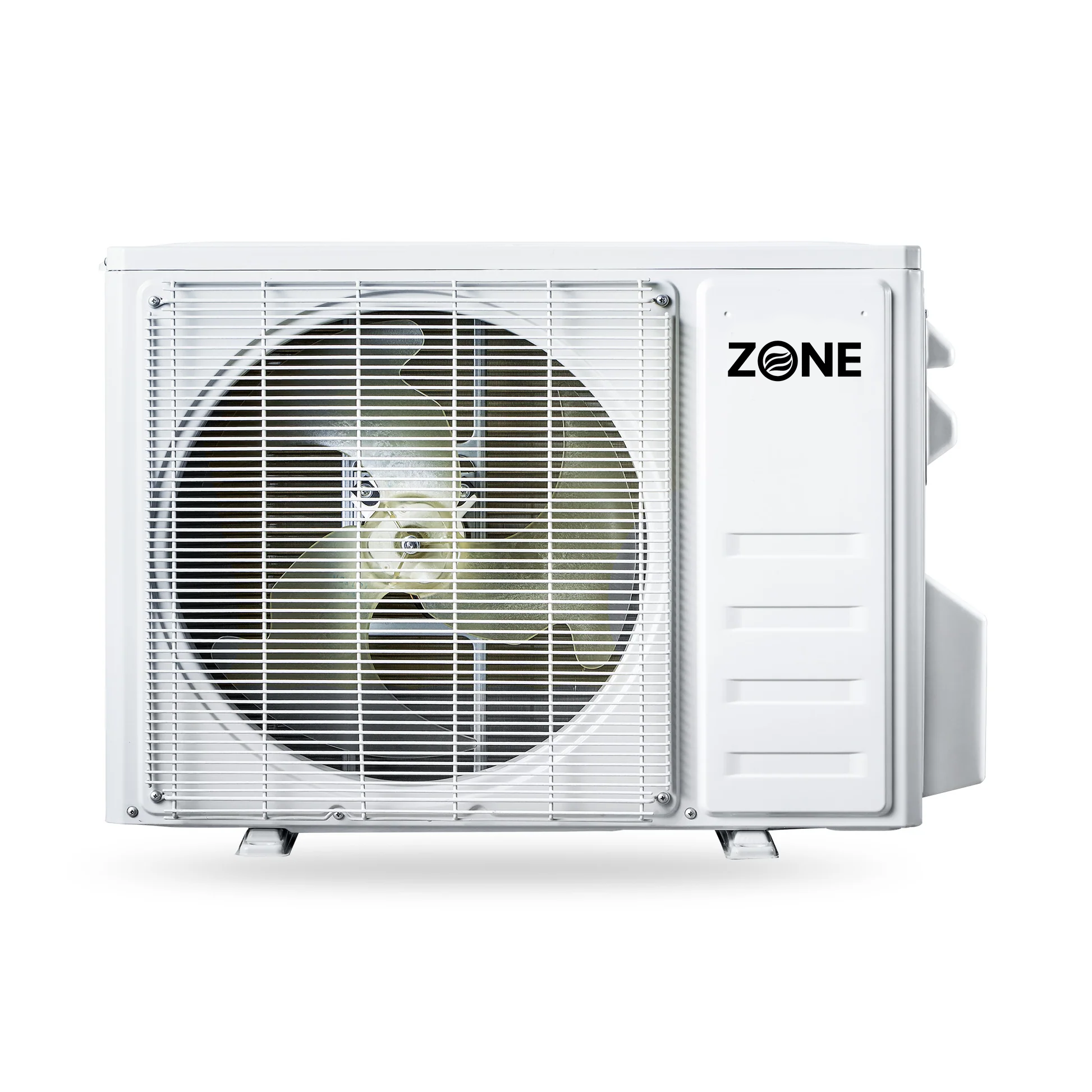

1. Frame and Mount — Open access above the room through a drop-ceiling tile or joist bay, secure the cassette into the ceiling opening using the included mounting frame, and set the outdoor unit on a pad or bracket. Route the pre-charged line set up through the ceiling and connect both units with the quick-connect fittings. Testing connections with soapy water is mandatory to check for leaks before activation, and proper torque and sealing are essential for leak prevention.

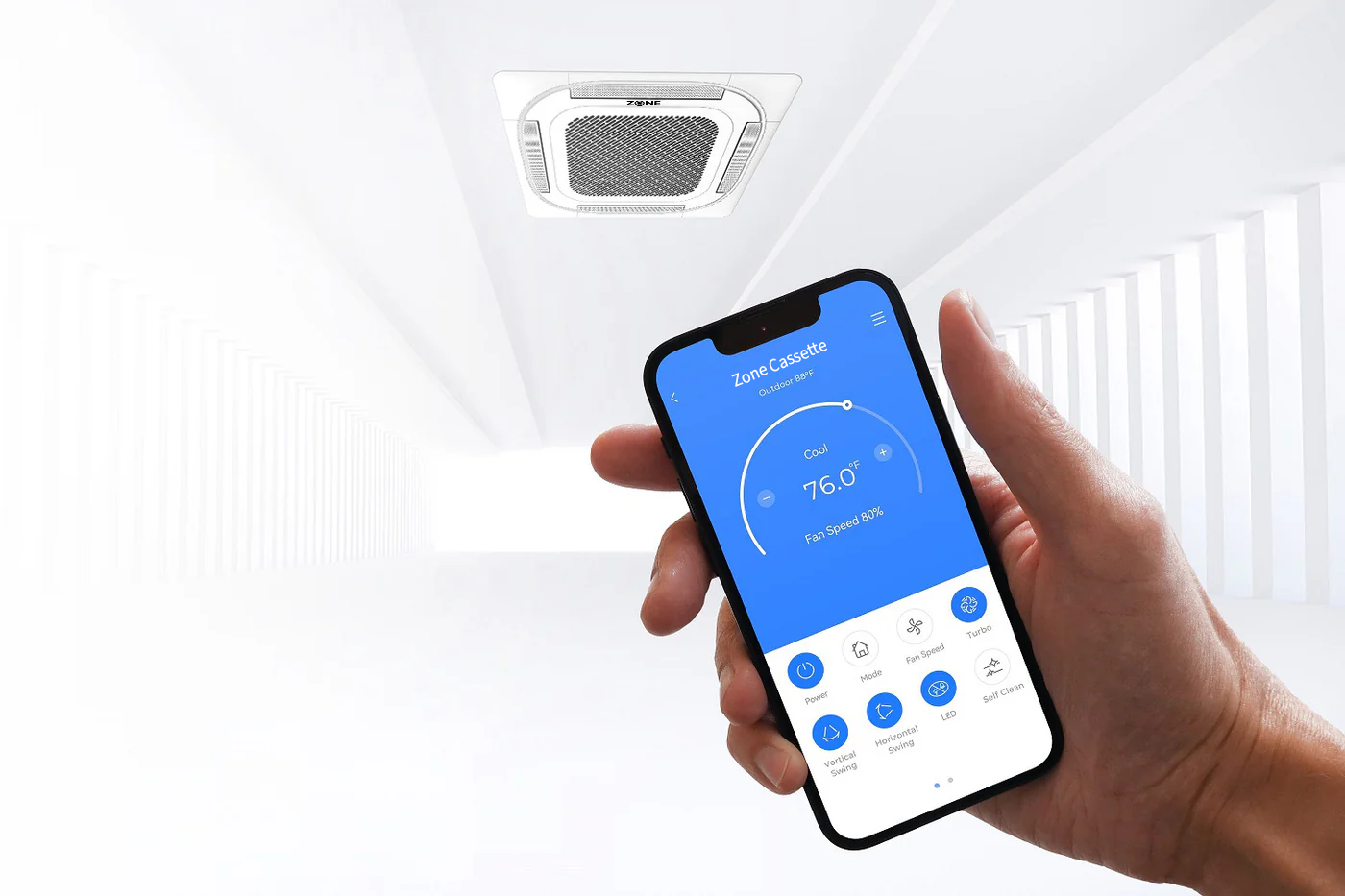

2. Power and Configure — Wire the system to a dedicated 208–230V circuit. A licensed electrician is recommended for the electrical disconnect box to ensure code compliance and safety. Once powered, configure WiFi settings through the smartphone app in minutes, then add voice-assistant control.
3. Instant Comfort — The cassette immediately begins heating or cooling, distributing air evenly in four directions across the room. Zoned, ductless comfort eliminates duct losses — you condition exactly the space you want with no wasted energy and no expensive ductwork.

Who It's For

Ideal for:

• Homeowners who want the mini-split equipment hidden in the ceiling for a clean, architectural look instead of a box on the wall
• Rooms in the 350–500 sq ft range — bedrooms, offices, sunrooms, and finished dens that need quiet, even comfort
• Spaces with a drop-ceiling or accessible joist bay above the room, where there is room to recess the cassette
• Budget-conscious DIYers who want to save thousands by skipping the contractor while still getting a flush ceiling install

If you want comfort that disappears into the ceiling, efficient energy use, and an install you can complete yourself, the Airframe 9,500 BTU cassette fits. Energy-efficient mini-splits may qualify for state and utility rebates (the federal 25C tax credit ended for systems placed in service after December 31, 2025) — so your discreet upgrade can pay you back across years of use.
